20W 30W 50W 60W 80W 100W 120 W
ray fine tech
845611

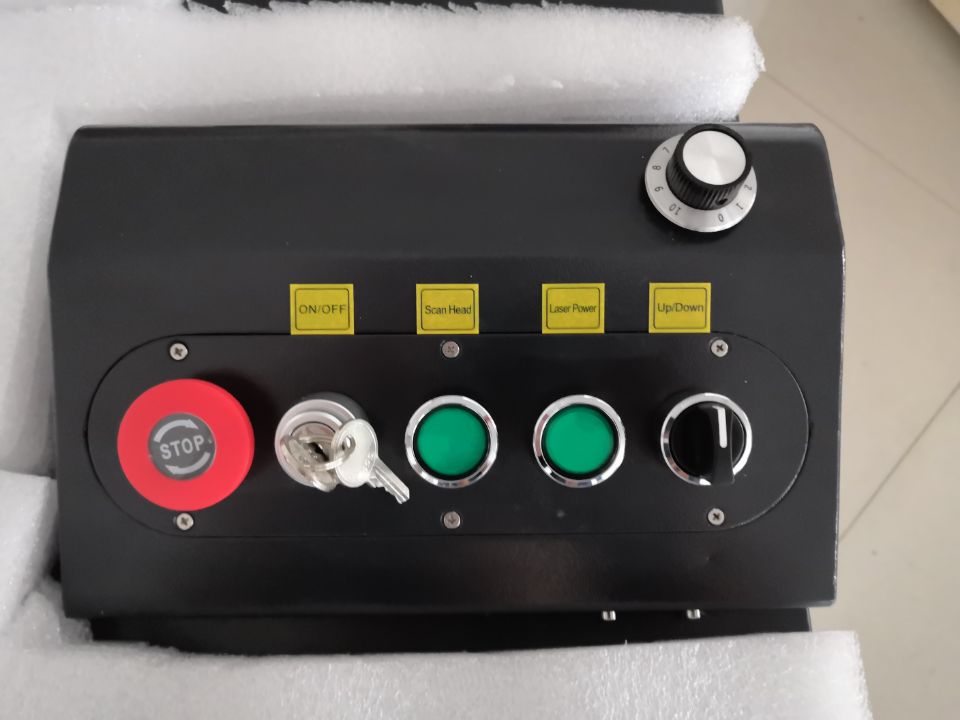

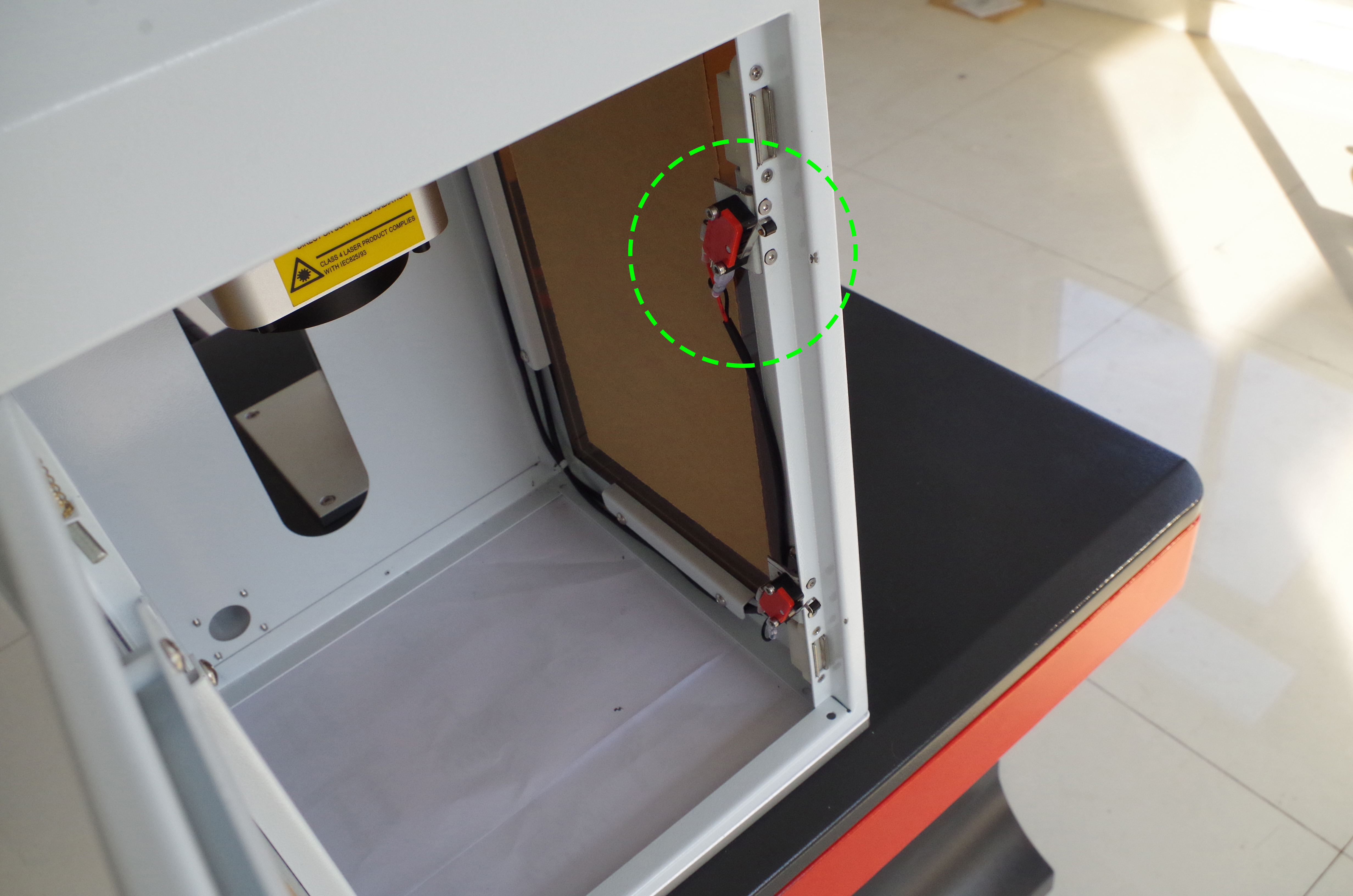

With door protection. When the door is opened the laser stop working,when the door is closed the laser can working normally.
Our Features

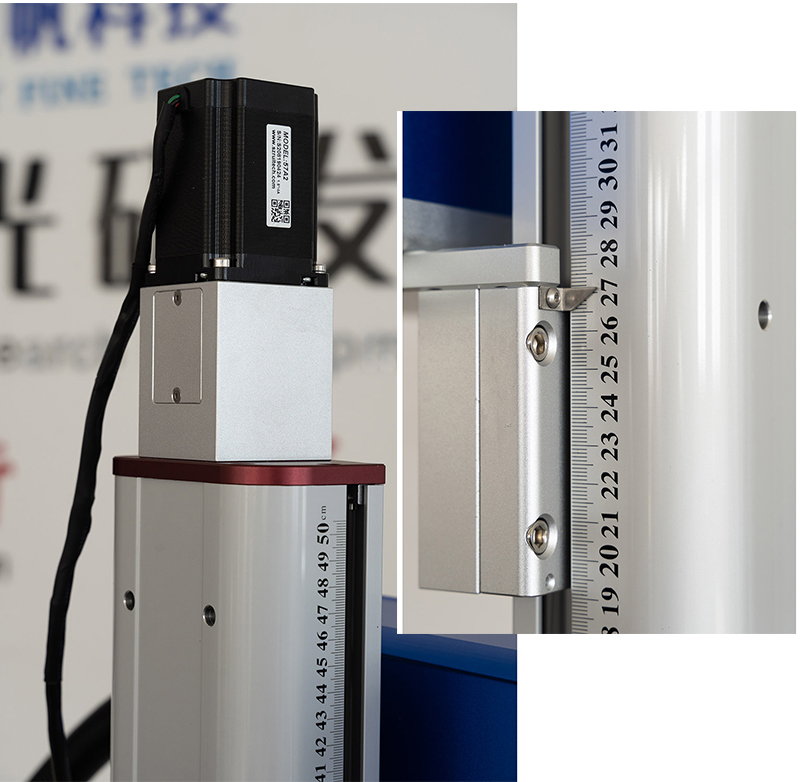

OUR ADVANTAGE 1: Motorized UP and DOWN
*We installed a stepper motor on the machine's column, so we use a switch to control the machine UP / DOWN, which is convenient and szybki
*With 10 level UP / DOWN speed adjust button
*500mm motorized column with clear ruler

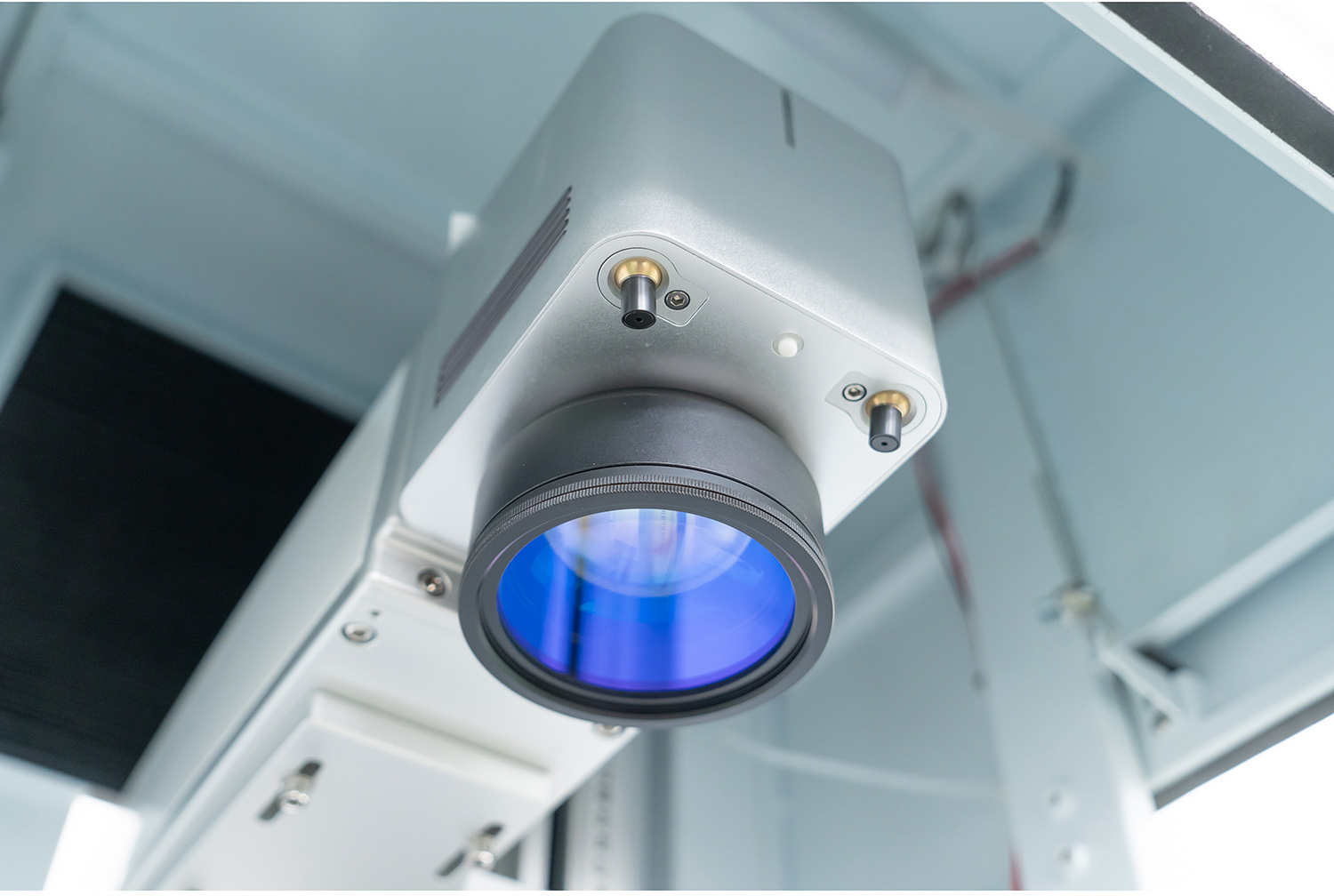

OUR ADVANTAGE 2 : Digital Galvanometer
*Double red dots easy to focus , they help you find the focal length, it is a very użyteczne
*Precise: Long time drift (work continuously for 8 hours) <0.3m Rad

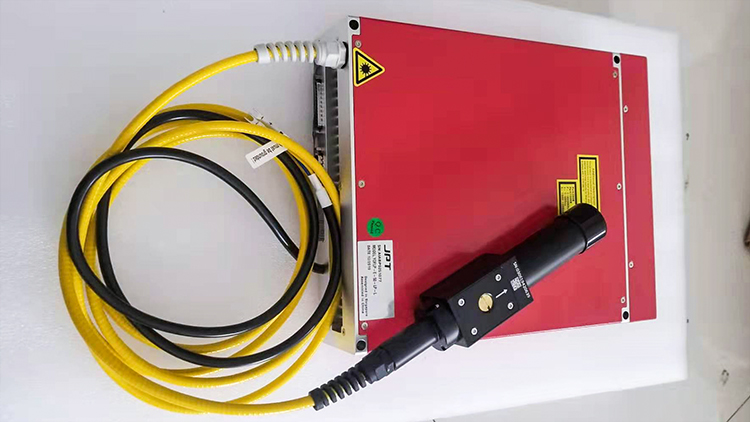

OUR ADVANTAGE 3 : JPT laser source (Fiber series and MOPA series)
*Fiber laser series is 20W 30W 50W , 1~600khz laser częstotliwość, 200ns laserowy szerokość; Seria MOPA to 20 W 30W 60W 80W 100W 120 W, 1 ~ 4000 kHz laser Częstotliwość, impuls laserowy 1 ~ 500ns szerokość. Seria MOPA jest lepsza, ma silniejszą energię i ma większy zakres regulacji.
*Stabilna wydajność pracy i żywotność obsługi ponad 100 000 godziny.
*Bądźcie cicho niż marka Raycus Market, Max Marka Pochodzi z inteligentnym wentylatorem chłodzącym wentylatorem działającym tylko wtedy, gdy źródło lasera nad pewną temperaturą

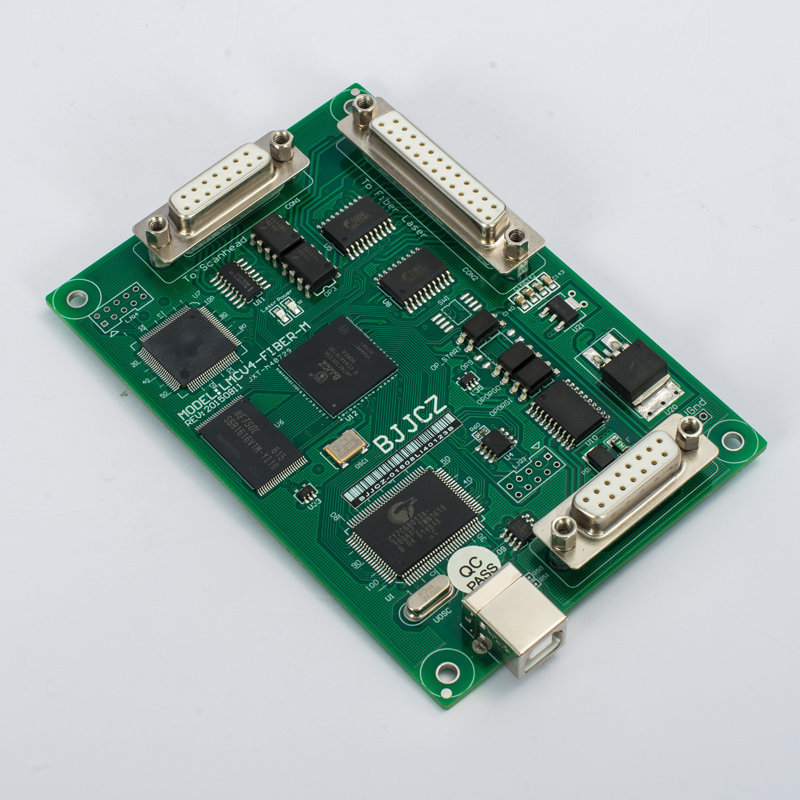

Nasza korzyść 4: Oryginalny system sterowania BJJcz i Free Ezcad Software(Możesz zainstalować oprogramowanie EZCAD w systemie Windows7, Windows8, Windows10)

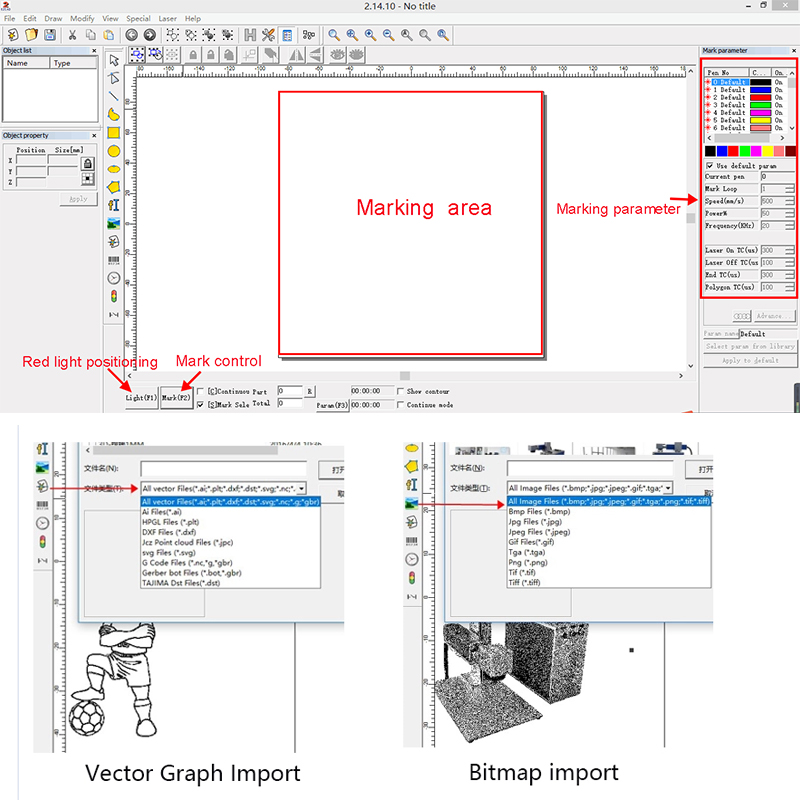

Oprogramowanie EZCAD

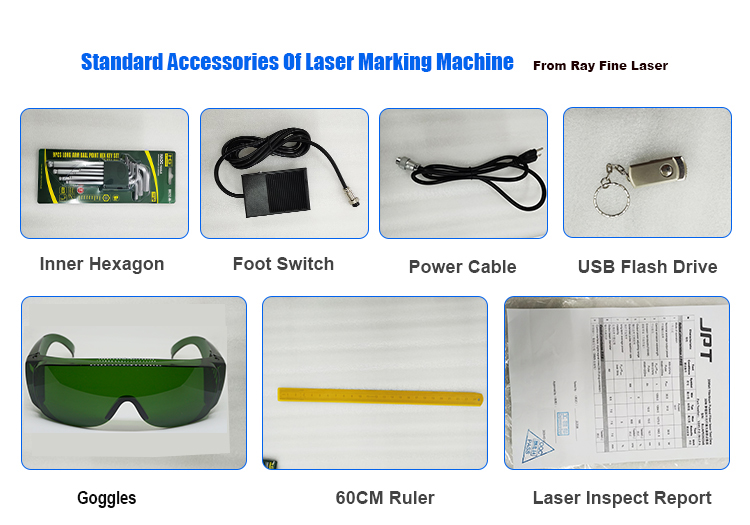

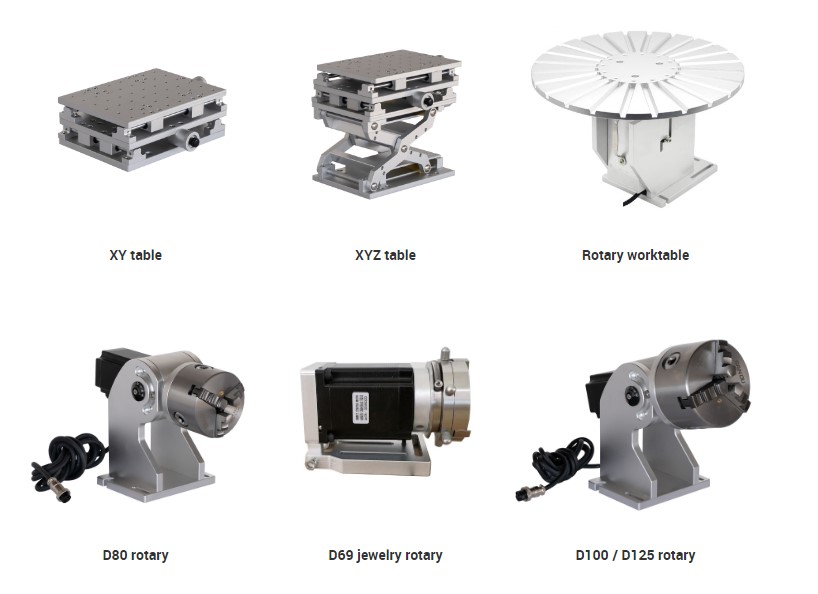

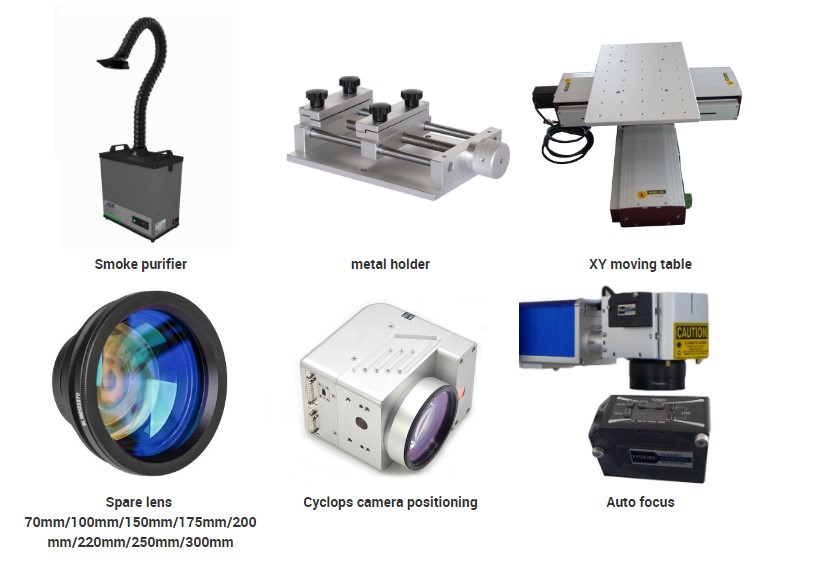

akcesoria opcjonalne
With door protection. When the door is opened the laser stop working,when the door is closed the laser can working normally.
Our Features
OUR ADVANTAGE 1: Motorized UP and DOWN
*We installed a stepper motor on the machine's column, so we use a switch to control the machine UP / DOWN, which is convenient and szybki
*With 10 level UP / DOWN speed adjust button
*500mm motorized column with clear ruler
OUR ADVANTAGE 2 : Digital Galvanometer
*Double red dots easy to focus , they help you find the focal length, it is a very użyteczne
*Precise: Long time drift (work continuously for 8 hours) <0.3m Rad
OUR ADVANTAGE 3 : JPT laser source (Fiber series and MOPA series)
*Fiber laser series is 20W 30W 50W , 1~600khz laser częstotliwość, 200ns laserowy szerokość; Seria MOPA to 20 W 30W 60W 80W 100W 120 W, 1 ~ 4000 kHz laser Częstotliwość, impuls laserowy 1 ~ 500ns szerokość. Seria MOPA jest lepsza, ma silniejszą energię i ma większy zakres regulacji.
*Stabilna wydajność pracy i żywotność obsługi ponad 100 000 godziny.
*Bądźcie cicho niż marka Raycus Market, Max Marka Pochodzi z inteligentnym wentylatorem chłodzącym wentylatorem działającym tylko wtedy, gdy źródło lasera nad pewną temperaturą
Nasza korzyść 4: Oryginalny system sterowania BJJcz i Free Ezcad Software(Możesz zainstalować oprogramowanie EZCAD w systemie Windows7, Windows8, Windows10)
Oprogramowanie EZCAD
akcesoria opcjonalne
UWAGA: Ten arkusz specyfikacji jest przykładem maszyny do oznaczania światłowodów JPT 50W.
Model | 50 W. |
Długość fali laserowej | 1064 Nm |
Laserowa moc wyjściowa | > 50 W. |
Max Pulse Energy | 1.25 MJ |
Czas trwania impulsu | 200ns |
Zakres prędkości powtarzania impulsu | 1-600 kHz |
Typ chłodzenia | Chłodzenie powietrzem |
Obszar znakowania | 100mm×100mm standard |
Max working speed | 8m/s |
Laser spot | 27.5μm when 100*100mm area |
Jakość wiązki laserowej M2 | <1,8 |
Min. Character size: | 0,1 mm |
Repetition Accuracy | <8μrad |
Napięcie zasilania: | AC110V 60Hz / AC220V 50 Hz ± 10% |
Oprogramowanie kontrolne | Ezcad |
Pobór energii | ≦700w |
Ciężar maszyny | 90~100 KG |
UWAGA: Ten arkusz specyfikacji jest przykładem maszyny do oznaczania światłowodów JPT 50W.
Model | 50 W. |
Długość fali laserowej | 1064 Nm |
Laserowa moc wyjściowa | > 50 W. |
Max Pulse Energy | 1.25 MJ |
Czas trwania impulsu | 200ns |
Zakres prędkości powtarzania impulsu | 1-600 kHz |
Typ chłodzenia | Chłodzenie powietrzem |
Obszar znakowania | 100mm×100mm standard |
Max working speed | 8m/s |
Laser spot | 27.5μm when 100*100mm area |
Jakość wiązki laserowej M2 | <1,8 |
Min. Character size: | 0,1 mm |
Repetition Accuracy | <8μrad |
Napięcie zasilania: | AC110V 60Hz / AC220V 50 Hz ± 10% |
Oprogramowanie kontrolne | Ezcad |
Pobór energii | ≦700w |
Ciężar maszyny | 90~100 KG |
--We provide free YouTube operation videos and PDF English Instrukcje.
--We have professional after-sales technicians who can assist through WeChat, Email, WhatsApp, Teamviewer.
--Before packing in our factory, we do a 24-hour test. When you receive the machine, connect to the computer and you can use the laser bezpośrednio.
--We Provide Free Ezcad Software.
--We provide free YouTube operation videos and PDF English Instrukcje.
--We have professional after-sales technicians who can assist through WeChat, Email, WhatsApp, Teamviewer.
--Before packing in our factory, we do a 24-hour test. When you receive the machine, connect to the computer and you can use the laser bezpośrednio.
--We Provide Free Ezcad Software.
