20W 30W 50W 60W 80W 100W
ray fine tech
845611
* High integrated drive and control card,integrated design.
* Red light assists focus and real-time background display.

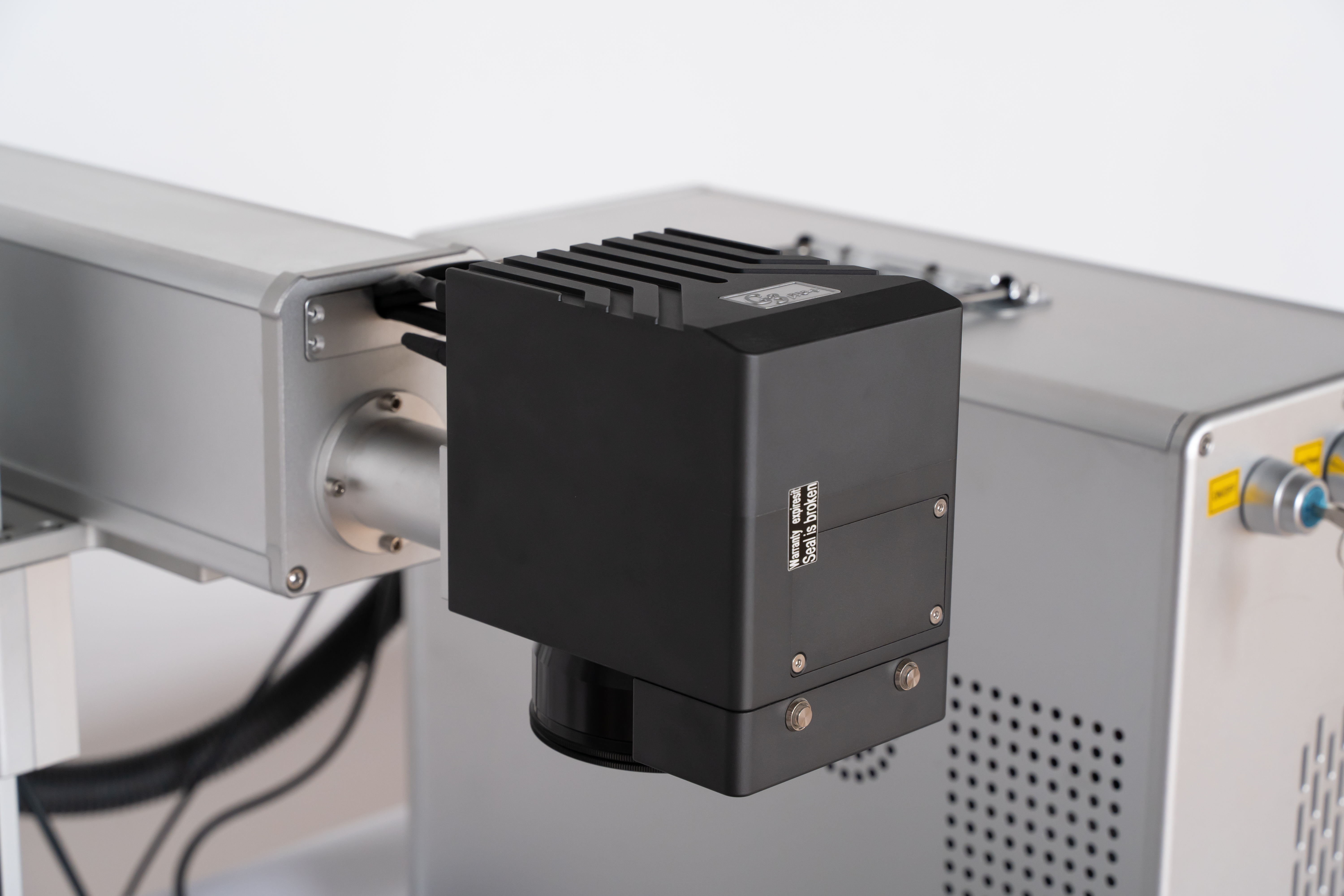

* The marking control card is integratedinside the laser head.
Our Features
OUR ADVANTAGE 1: Motorized UP and DOWN
*We installed a stepper motor on the machine's column, so we use a switch to control the machine UP / DOWN, which is convenient and szybki

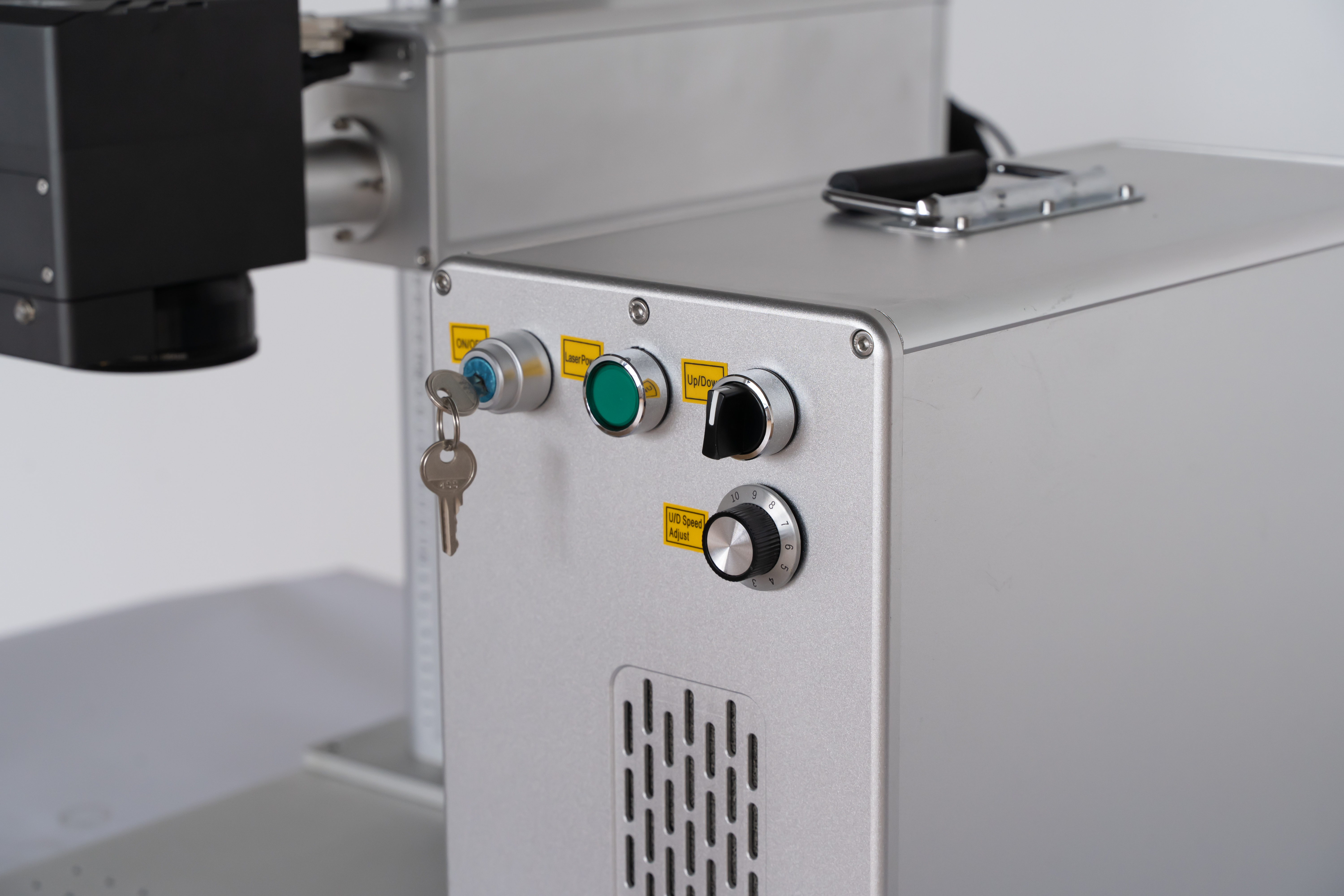

*With 10 level UP / DOWN speed adjust button
*500mm motorized column with clear ruler

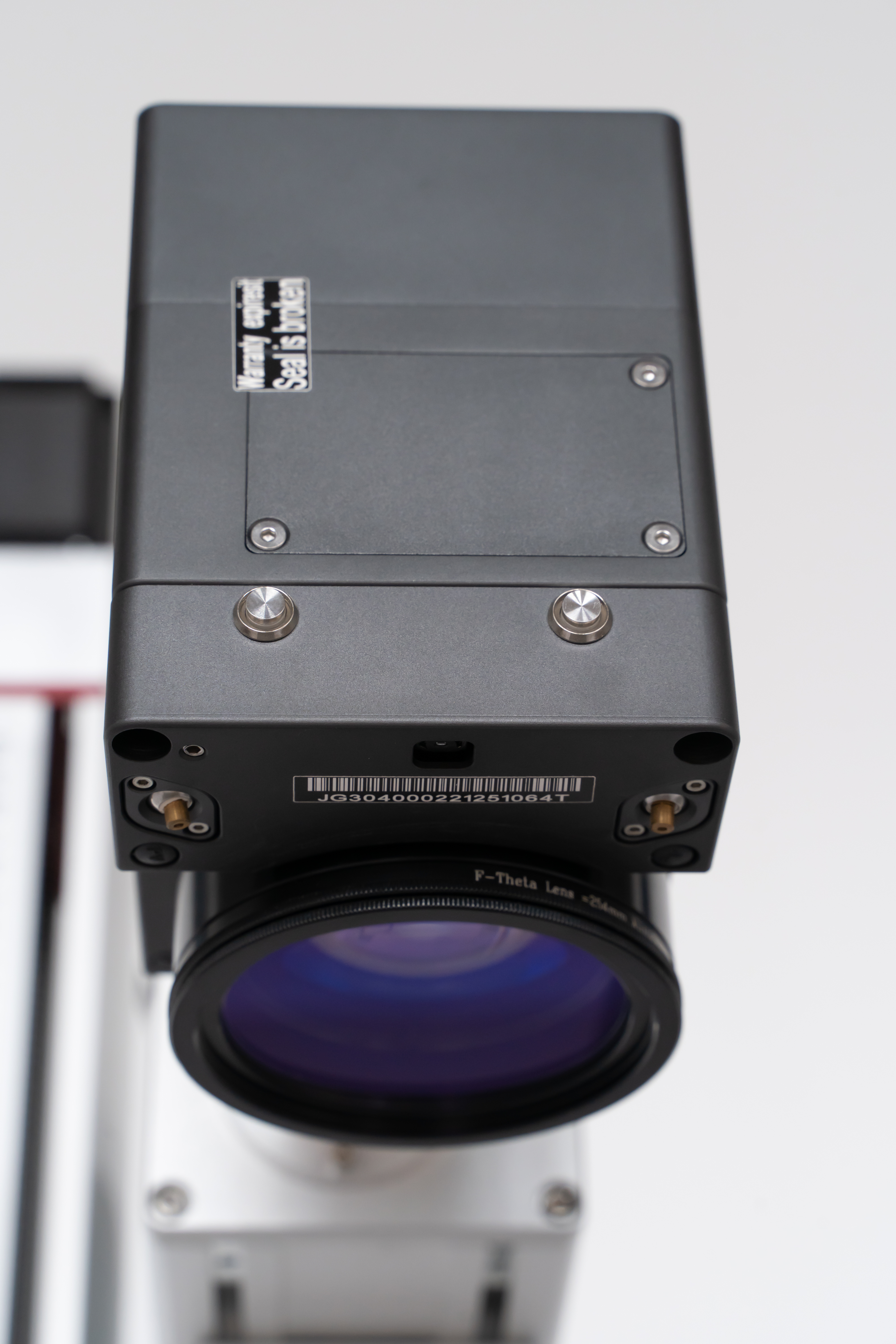

OUR ADVANTAGE 2 : Digital Galvanometer
*Double red dots easy to focus , they help you find the focal length, it is a very użyteczne
*Precise: Long time drift (work continuously for 8 hours) <0.3m Rad
OUR ADVANTAGE 3 : JPT laser source (Fiber series and MOPA series)
*Seria laserowa światłowodowa wynosi 20 W 30 W 50 W, Laser 1 ~ 600 kHz częstotliwość, 200ns laserowy szerokość; Seria MOPA to 20 W 30W 60W 80W 100W 120 W, 1 ~ 4000 kHz laser Częstotliwość, impuls laserowy 1 ~ 500ns szerokość. Seria MOPA jest lepsza, ma silniejszą energię i ma większy zakres regulacji.
*Stabilna wydajność pracy i żywotność obsługi ponad 100 000 godziny.
*Bądźcie cicho niż marka Raycus Market, Max Marka Pochodzi z inteligentnym wentylatorem chłodzącym wentylatorem działającym tylko wtedy, gdy źródło lasera nad pewną temperaturą
Oprogramowanie EZCAD
akcesoria opcjonalne
* High integrated drive and control card,integrated design.
* Red light assists focus and real-time background display.
* The marking control card is integratedinside the laser head.
Our Features
OUR ADVANTAGE 1: Motorized UP and DOWN
*We installed a stepper motor on the machine's column, so we use a switch to control the machine UP / DOWN, which is convenient and szybki
*With 10 level UP / DOWN speed adjust button
*500mm motorized column with clear ruler
OUR ADVANTAGE 2 : Digital Galvanometer
*Double red dots easy to focus , they help you find the focal length, it is a very użyteczne
*Precise: Long time drift (work continuously for 8 hours) <0.3m Rad
OUR ADVANTAGE 3 : JPT laser source (Fiber series and MOPA series)
*Seria laserowa światłowodowa wynosi 20 W 30 W 50 W, Laser 1 ~ 600 kHz częstotliwość, 200ns laserowy szerokość; Seria MOPA to 20 W 30W 60W 80W 100W 120 W, 1 ~ 4000 kHz laser Częstotliwość, impuls laserowy 1 ~ 500ns szerokość. Seria MOPA jest lepsza, ma silniejszą energię i ma większy zakres regulacji.
*Stabilna wydajność pracy i żywotność obsługi ponad 100 000 godziny.
*Bądźcie cicho niż marka Raycus Market, Max Marka Pochodzi z inteligentnym wentylatorem chłodzącym wentylatorem działającym tylko wtedy, gdy źródło lasera nad pewną temperaturą
Oprogramowanie EZCAD
akcesoria opcjonalne
UWAGA: Ten arkusz specyfikacji jest przykładem maszyny do oznaczania światłowodów JPT 50W.
Model | 50 W. |
Długość fali laserowej | 1064 Nm |
Laserowa moc wyjściowa | > 50 W. |
Max Pulse Energy | 1.25 MJ |
Czas trwania impulsu | 200ns |
Zakres prędkości powtarzania impulsu | 1-600 kHz |
Typ chłodzenia | Chłodzenie powietrzem |
Obszar znakowania | 100 mm × 100 mm standard |
Maksymalna prędkość robocza | 8m/s |
Laser spot | 27.5μm when 100*100mm area |
Jakość wiązki laserowej M2 | <1,8 |
Min. Character size: | 0,1 mm |
Repetition Accuracy | <8μrad |
Napięcie zasilania: | AC110V 60Hz / AC220V 50 Hz ± 10% |
Oprogramowanie kontrolne | Ezcad |
Pobór energii | ≦700w |
Ciężar maszyny | 40~45 KG |
UWAGA: Ten arkusz specyfikacji jest przykładem maszyny do oznaczania światłowodów JPT 50W.
Model | 50 W. |
Długość fali laserowej | 1064 Nm |
Laserowa moc wyjściowa | > 50 W. |
Max Pulse Energy | 1.25 MJ |
Czas trwania impulsu | 200ns |
Zakres prędkości powtarzania impulsu | 1-600 kHz |
Typ chłodzenia | Chłodzenie powietrzem |
Obszar znakowania | 100 mm × 100 mm standard |
Maksymalna prędkość robocza | 8m/s |
Laser spot | 27.5μm when 100*100mm area |
Jakość wiązki laserowej M2 | <1,8 |
Min. Character size: | 0,1 mm |
Repetition Accuracy | <8μrad |
Napięcie zasilania: | AC110V 60Hz / AC220V 50 Hz ± 10% |
Oprogramowanie kontrolne | Ezcad |
Pobór energii | ≦700w |
Ciężar maszyny | 40~45 KG |
--We provide free YouTube operation videos and PDF English Instrukcje.
--We have professional after-sales technicians who can assist through WeChat, Email, WhatsApp, Teamviewer.
--Before packing in our factory, we do a 24-hour test. When you receive the machine, connect to the computer and you can use the laser bezpośrednio.
--We Provide Free Ezcad Software.
--We provide free YouTube operation videos and PDF English Instrukcje.
--We have professional after-sales technicians who can assist through WeChat, Email, WhatsApp, Teamviewer.
--Before packing in our factory, we do a 24-hour test. When you receive the machine, connect to the computer and you can use the laser bezpośrednio.
--We Provide Free Ezcad Software.
